WL14-2P430

上海銳譽為你提供德國SICK西克WL14-2P430傳感器，優惠折扣期待你的咨詢。

Photoelectric sensors

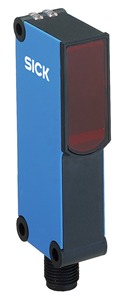

W14-2, Photoelectric retro-reflective sensor, Standard optics

Type > WL14-2P430
Part No. > 1026049
At a glance
? Emitter LED with visible red light
? Polarizing filter
? High immunity to ambient light
? Rugged plastic housing
Your benefits
? Highly visible red light provides quick and easy installation
? Reliable detection, even of shiny targets due to polarizing filters
? Crosstalk and ambient light immunity reduces false readings and downtime
? High availability in the field

Features
Sensor/detection principle: Photoelectric retro-reflective sensor, Standard optics
Dimensions (W x H x D): 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission): Rectangular
Sensing range max.: 0.15 m ... 6 m 1)
Sensing range: 0.15 m ... 4 m 2)
Type of light: Visible red light
Light source: LED 3)
Wave length: 645 nm
Angle of dispersion: Ca. 2 °
Light spot size (distance): ? 140 mm (4 m)
Mechanics/electronics
Supply voltage: 10 V DC ... 30 V DC 1)
Power consumption: ≤ 35 mA 2)
Switching output: PNP
Output function: Complementary
Switching mode: Light/dark switching
Output current Imax.: ≤ 100 mA
Response time: ≤ 2.5 ms 3)
Switching frequency: 200 Hz 4)
Connection type: Connector M12, 4-pin
Circuit protection::: A, C, D 5) 6) 7)

Weight: 40 g
Polarisation filter: ü
Housing material: ABS, Plastic
Optics material: PMMA
Enclosure rating: IP 67
Ambient operating temperature: -25 °C ... 60 °C
Ambient storage temperature: -40 °C ... 70 °C
UL File No.: NRKH.E181493 & NRKH7.E181493
